Products >> Anti vandal >> 8MM Anti-vandal

  • SEALED IP65 RATED ANTI VANDAL
  • SEALED IP65 RATED ANTI VANDAL
  • SEALED IP65 RATED ANTI VANDAL
  • SEALED IP65 RATED ANTI VANDAL
SEALED IP65 RATED ANTI VANDAL SEALED IP65 RATED ANTI VANDAL SEALED IP65 RATED ANTI VANDAL SEALED IP65 RATED ANTI VANDAL

SEALED IP65 RATED ANTI VANDAL

8mm Mounted panel anti-vandal switches are IP65 rated.Short body design.It carrys a long life expectancy,with a mechanical life of 1,000,000 cycles and electrical life of 200,000 cycles.40,000 hours norminal lamp life.Non-illuminated or Illuminated.

Electrical Parameter


  1. Electrical Rating: 2A36VDC
  2. Mechanical Life: 200,000 Cycles
  3. Electrical Life: 50,000 Cycles
  4. Contact Resistance: 50mΩ Max.
  5. Insulation Resistance: 1000 MΩ Min.
  6. Dielectric Strength: 2,000VAC
  7. Operating/Storage Temperature: -20°C to 55°C
  8. Travel: 1.50mm
  9. Moisture Protection: IP65
  10.
  11.
Terminal option

Solder lug termination or snap in termination

Function
Momentary,1NO(SPST)

  1. When you push the anti-vandal switch's button,the button is concave.When you release your finger the button come back to the orignal positon.

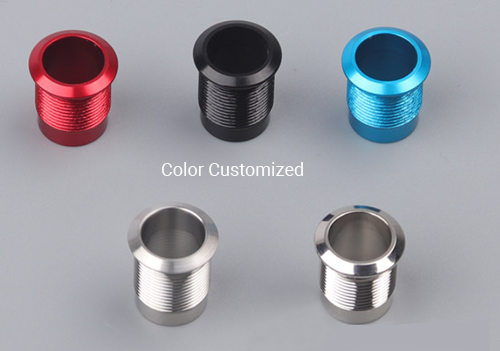

Body color
Silver,Golden,Black,Red,Blue,or customized

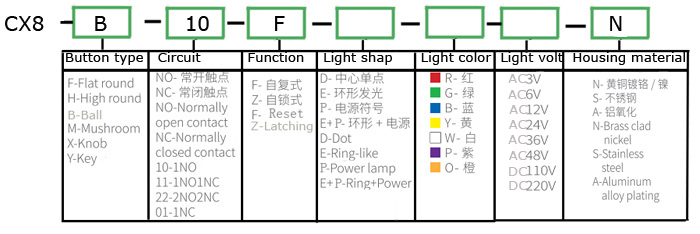

 How to order our anti-vandal push button switches?




CX switch's advantage in the field of anti-vandal

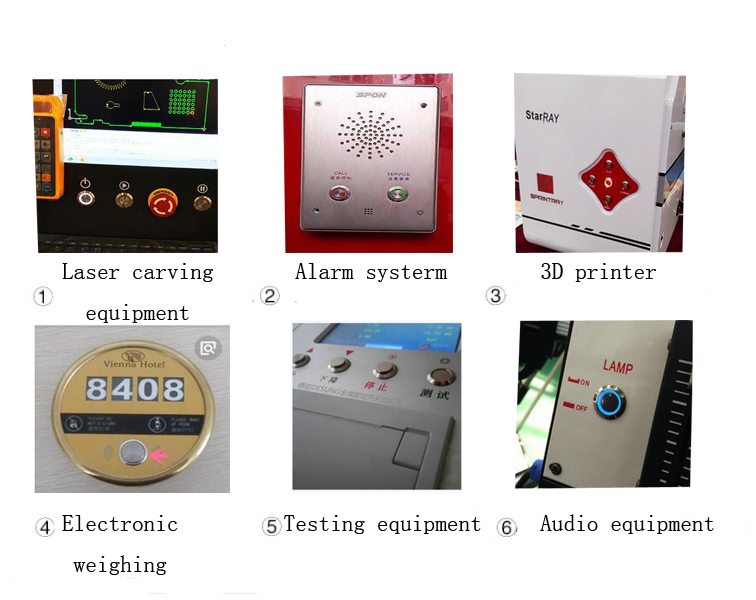

Anti-vandal switches applications


Applications include Lighting ficture,Medical equipments,Home appliance,security devices,Kiosk panels,Audio/visual equipment,etc

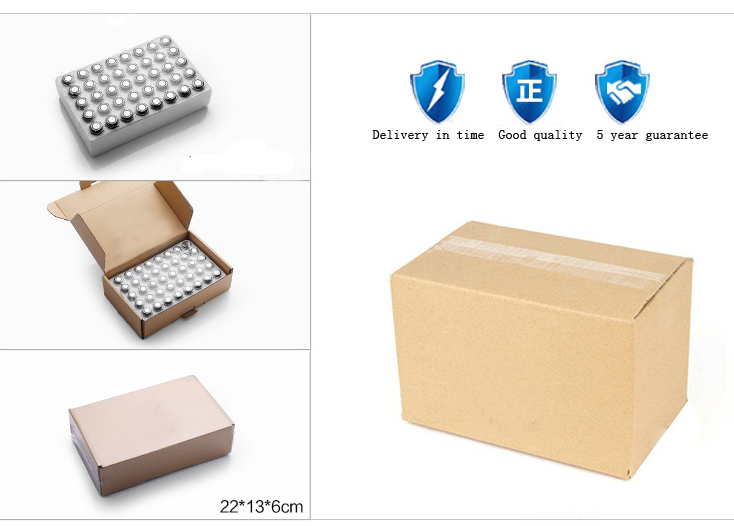

 Packing detail

The common questions about metal push button switch order:


1.Q: how many kinds diameter about the metal push button switch ?

A: We could make mounted panel cut out with 8mm,12mm,16mm,19mm,22mm,25mm,28mm,30mm.

2.Q:What voltage of led do you make?

A:We could make 3V  6V 12V 24V 110V 220V 380V  AC/DC various voltage .

3.Q: What led color of metal push button switch do you make ?

A:Red,Yellow,Blue,Green,white,orange,Purple etc.Certainly,we also could make double-color LED product as per your need.

4.Q: What kind of  functions and circuits of the metal push button switch do you make ?

A: Momentary (function).

     Latching( function)

     SPST,SPDT,DPST,DPDT

5.Q:What materail of metal push button switch can you do ?

A:Stainless steel,nickel plated brass, and zinc alloy.plated gold will be customized.

6.Q:What button type do you make?

A:We can make flat,high flat ,arc button.

7.Q:What pin type do you make?

A:We can make screw terminal and solder pin.

8.Q:Do you make button with led and without led?

A:Yes,we can make button with led and without led.

9.Q:Are your factory customized button logo?

A:Yes,we can.
If you still have any question please feel free to send us mail.info@cxswitch.com.
