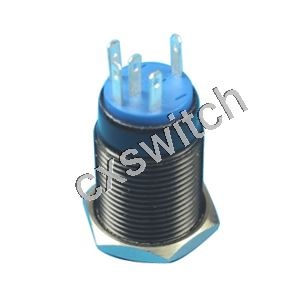

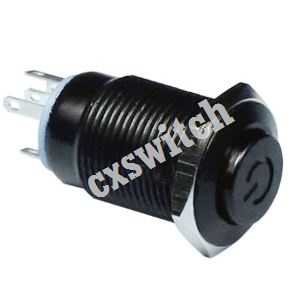

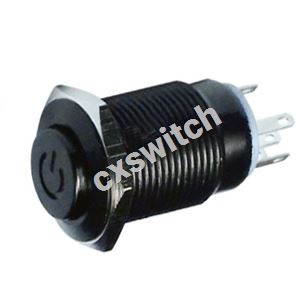

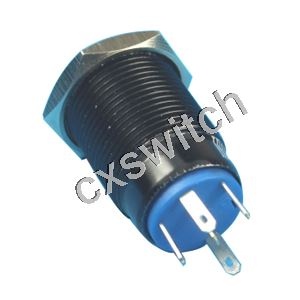

OXIDIZED BLACK ANTI VANDAL SWITCHES
- Product No.：CX16B-H11P
16mm cut out panel oxidized black anti vandal switches，IP65 rated for dust and moisture protection.Sealed,long life cycles.40,000 hours norminal lamp life.Non-illuminated or Illuminated.
Electrical Rating: 2A36VDC/2A250VAC
Mechanical Life: 200,000 Cycles
Electrical Life: 50,000 Cycles
Contact Resistance: 50mΩ Max.
Insulation Resistance: 1000 MΩ Min.
Dielectric Strength: 2,000VAC
Operating/Storage Temperature: -20°C to 55°C
Moisture Protection: IP65
The brief introduction of CX Switch
CX Switch is responsible for the highest quality of anti-vandal switch and hairdryer switches.
ISO 9001 Certified Enterprise Customized Production Imported CNC Lathe Selected High quality Pipe Waterproof dust proof High Temperature and Corrosion Resistance Built-in Waterproof Cap Japanese Mitsubishi PBT PA66 Rhos V0 Flame Retardant Excellent R & D and New Product Design Team Long life Led lamp.Built-in Safety Resistance.
High precision H62 Brass Silver Plating Copper silver plated contact.
Excellent Craftsmanship and Performance High.
long life expectancy,Mechanical life 1,000,000 cycles momentary,500,000 cycles Latching.multiple actuator styles,screw or solder termination options,for security and appliance markets.Actuator option
Solder lug termination,snap in termination,screw fixing termiantion,wired mounted.
Maintained,momentary on or momentary off, 1NO+1NC,SPST,SPDT,DPST,DPDT
- Maintained function
- 1,Light always on.When you push the button it is power on,when you push again,it is power off.
- 2,When you push the button,the light on and the device power on,when you push again,the light off and the device power off.
Ring,dot,power signal,or customized

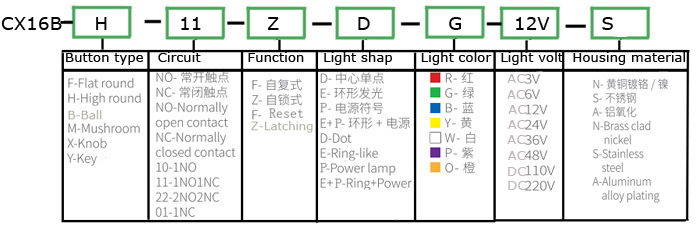

How to order 16mm anti-vandal switch?
Lighting,Cleaning equipment,Medical equipment,Kitchen equipment,Home appliance,security devices,industrial controls,Kiosk panels,Audio/visual equipment,Automation instruments etc
The advantage of CX Switch
The common questions about metal push button switch order
1.Q: How many kinds of diameter about the metal push button switch ?
A: We could make diametaer of 8mm,12mm,16mm,19mm,22mm,25mm,28mm and 30mm
2.Q:What voltage of led do you make?
A:We could make DC3V,DC6V,DC12V,DC24V,DC48V,AC110V,AC220V various voltage .
3.Q: What led color of metal push button switch do you make ?
A:Red,Yellow,Blue,Green,white,orange,Purple etc.Certainly,we also could make double-color LED product as per your need.
4.Q: What kind of functions and circuits of the metal push button switch do you make ?
A: Momentary (function).
5.Q:What meterail of metal push button switch can you do ?
A:Stainless steel,nickel plated brass, and zinc alloy.plated gold will be customized.
6.Q:What button type do you make?
A:We can make flat,high flat ,arc button.
7.Q:What pin type do you make?
A:We can make screw terminal and solder pin.
8.Q:Do you make button with led and without led?
A:Yes,we can make button with led and without led.
9.Q:Are your factory customized button logo?
