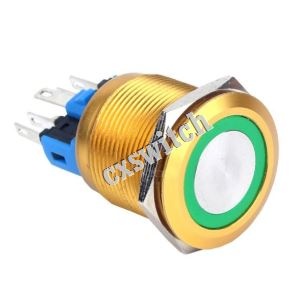

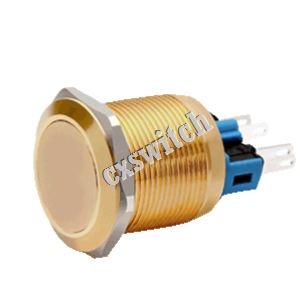

22mm diameter panel cutout waterproof metal push button switch.

IP65 rated for dust and moisture protection.Sealed,long life cycles.40,000 hours norminal lamp life.Non-illuminated or Illuminated.

Electrical Parameter

---

Electrical Rating: 5A36VDC/5A250V

Mechanical Life: 200,000 Cycles

Electrical Life: 50,000 Cycles

Contact Resistance: 50mΩ Max.

Insulation Resistance: 1000 MΩ Min.

Dielectric Strength: 2,000VAC

Operating/Storage Temperature: -20°C to 55°C

Travel: 1.50mm

Moisture Protection: IP65

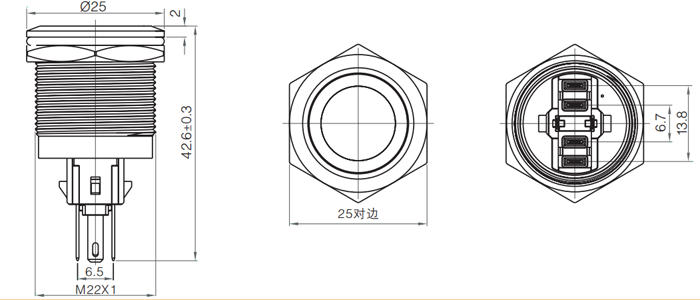

The drawing

---

The Advantage of CX Switch

---

CX Switch is responsible for the highest quality of anti-vandal switch and hairdryer switches.

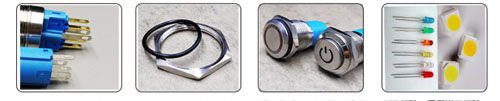

ISO 9001 Certified Enterprise Customized Production Imported CNC Lathe  Selected High quality Pipe Waterproof dust proof High Temperature and Corrosion Resistance  Built-in Waterproof Cap Japanese Mitsubishi PBT PA66 Rhos V0 Flame Retardant Excellent R & D and New Product Design Team Long life Led lamp.Built-in Safety Resistance.

High precision H62 Brass Silver Plating Copper silver plated contact.



Excellent Craftsmanship and Performance High.

long life expectancy,Mechanical life 1,000,000 cycles momentary,500,000 cycles Latching.multiple actuator styles,screw or solder termination options,for security and appliance markets.

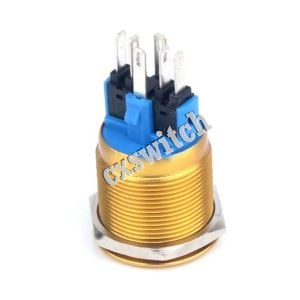

Terminal options

---

 1,solder lug termination 22 AWG UL 1005 150mm long wire lead option.2,Snap in termination.3,Screw fixing termination.4,wired mounted.

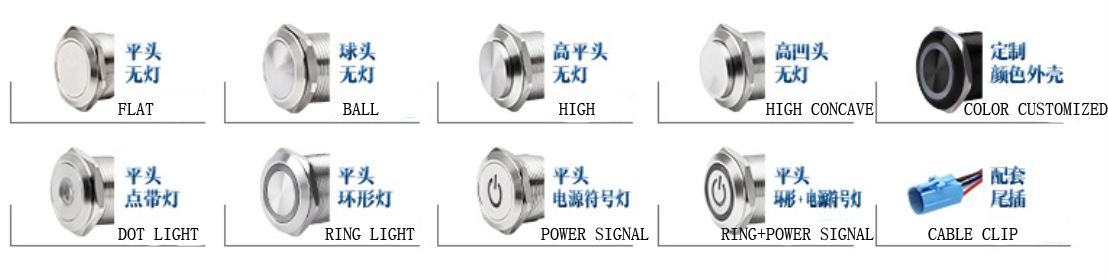

Featuring multiple Actuator options

---

Flat,High,Arch shape(ball),Mushroom shapr.etc

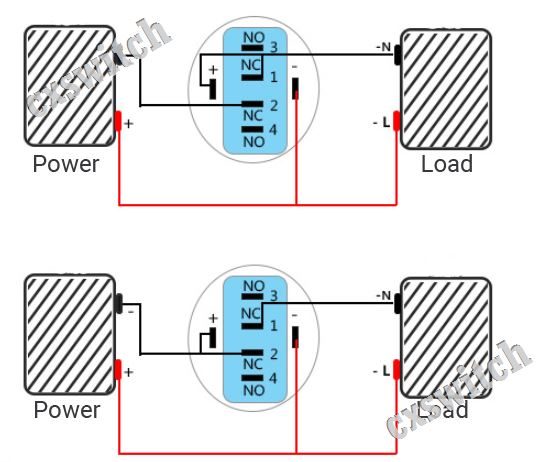

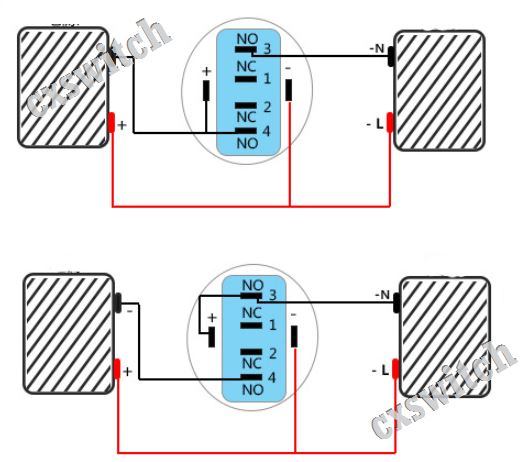

Functions and circuit

---

SPST,SPDT,DPST,DPDT, locked or momentary functions

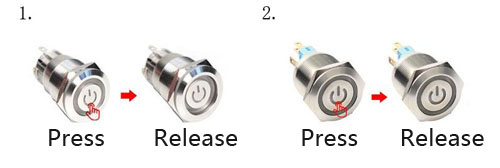

Locked

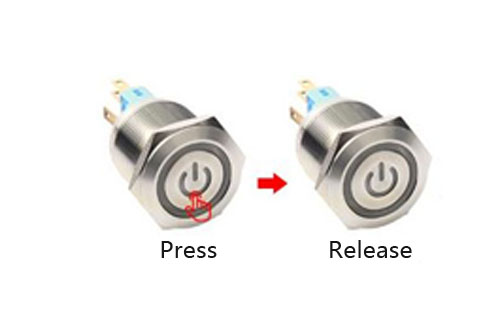

When you push the button the anti-vandal switch's light is on and device is power on and when you push again and the light and decice power off.

Or the anti-vandal switch's light is always power on.When you push the button the device is power off and when you push again it is power on.

The anti-vandal swtich's light is always power on.When you push the button the device is power on and when push again it is power off.

Or When you push the button the anti-vandal switch's light is on and device is power on and when you push again and the switch's light off,decice power off.


Momentary

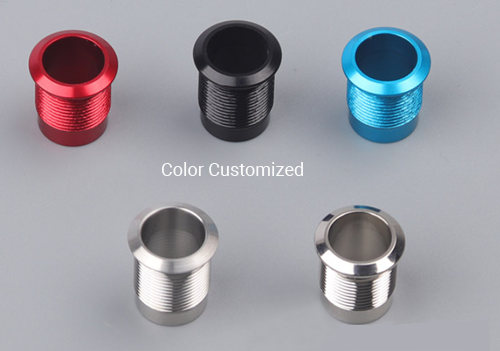

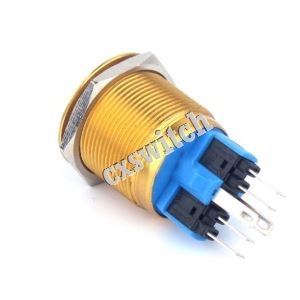

Body color

---

Silver,Golden,Black,Red,Blue,or customized

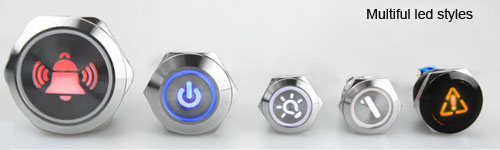

LED light shape

---

Ring,dot,power signal,or customized

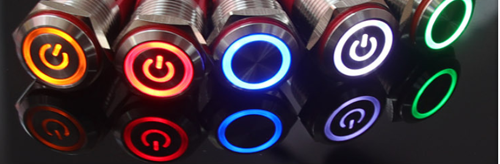

Multiple led illuminated color

---

Red,Green,Orange,Blue,White

LED voltage

---

DC3v,DC6v,DC12v,DC24v,DC36v,DC48v,AC110v,AC220v



Perfect for applications in humid and dusty spaces

---



Anti-vandal is equipped with silicone sealing and a breathable gland, which protect the your appliances  against moisture condensation inside and provide it with a very high level of ingress protection IP 65. Thus, it can be used in areas with increased humidity and dust concentration.

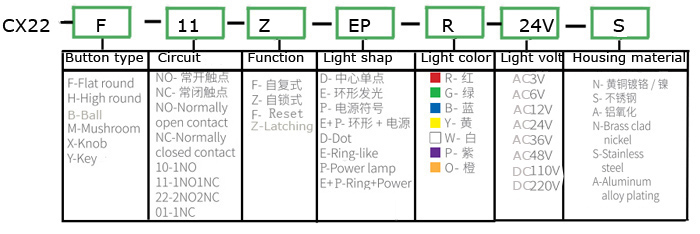

 How to select a right anti-vandal push button switch?

---

Anti-vandal applications

---

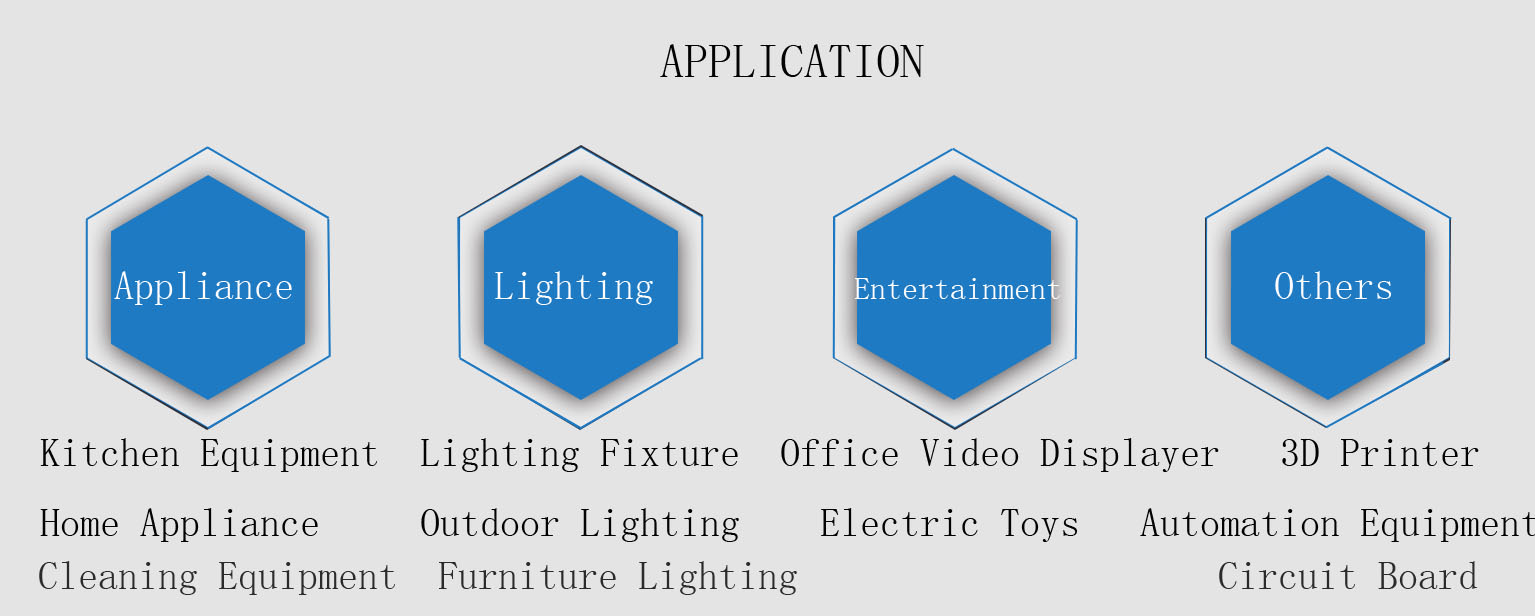

Anti-vandal switch apply in the field of Lighting,Cleaning equipment,Medical equipment,Kitchen equipment,Home appliance,security devices,industrial controls,Kiosk panels,Audio/visual equipment,Automation instruments etc.Specifically applied to Public interactive kiosks that provide tourist information or government forms Elevator buttons and security switches Pedestrian crossing signal activation switches Intercom "push-to-talk" devices at the entrance to apartment buildings Electronic door switches for garages and mechanical gates Parking lot ticket machines and computerized ticket paying stations Alarm, safety and security systems Automatic food and drink vending machines Public address systems in schools, community centers, and bars Rental equipment that may be subjected to heavy use.



How to select the right anti-vandal switch for your device?

---



First,cutout,depend on the diameter of the panel cutout of your appliance.

Second,single pole or double pole.it is depend on the appliance use purpose.

3^rd,button shape,it is depend on your design of your appliance.

4^th,Illuminated or non illuminated.

5^th ,If it is illuminated.Led color and light voltage is the two point you have to check with your engineer.

Color available with Red,Blue,Green,Yellow
Light voltage available with 6VDC,12VDC,24VDC,36VDC,48VDC,11OVAC,22OVAC

6^th ,wiring type.

A,solder and snap in terminal.

B,screw fixing terminal.

C,cable clip with 22 AWG UL 1005 150mm long wire lead.

D,Molded back with wire leads 500mm long.

Cable length customized.

 7^th ,body color,normally it is silver if you want fancy color we have multiple color option.Red,green,blue,golden,or customized.

The common questions about metal push button switch order

---



1.Q: How many kinds of diameter about the metal push button switch ?

A: We could make  diametaer of 8mm,12mm,16mm,19mm,22mm,25mm,28mm and 30mm

2.Q:What voltage of led do you make?

A:We could make 3V  6V 12V 24V 110V 220V 380V  AC/DC various voltage .

3.Q: What led color of metal push button switch do you make ?

A:Red,Yellow,Blue,Green,white,orange,Purple etc.Certainly,we also could make double-color LED product as per your need.

4.Q: What kind of functions and circuits  of the metal push button switch do you make ?

A: Momentary (function).

     Latching( function).

   SPST,DPST,DPDT,SPDT

5.Q:What meterail of metal push button switch can you do ?

A:Stainless steel,nickel plated brass, and zinc alloy.plated gold will be customized.

6.Q:What button type do you make?

A:We can make flat,high flat ,arc button.

7.Q:What pin type do you make?

A:We can make screw terminal and solder pin.

8.Q:Do you make button with led and without led?

A:Yes,we can make button with led and without led.

9.Q:Are your factory customized button logo?



A:Yes,we can.

If you still have any questions pls feel free to send us mail.info@cxswitch.com
