This dimmer switch is often used as DC1 2V switch,also can be as a led dimmer switch for led lights from 5V to 24V.Pls make sure your driver is a constant voltage driver since this dimmer switches can be connected to constant voltage driver only.And This led dimmer switch must cannot be connected to the constant current driver.You can check the picture to see the difference between the constant voltage driver and constant current driver.

Touch sensor switch/dimmer knob for 12 volt led lights, just touch it. For This DC 12 volt dimmer switch,just Short press to turn on and off the led lights slowly, Long press to stepless dimming and control your light.It has memory funtion.When you turn on the light again,the light brightness will be the same as last time automatically. Pls confirm your diver is a constant voltage driver.This led dimmer must can not connect to a constant current.Can check the picture to see the details.

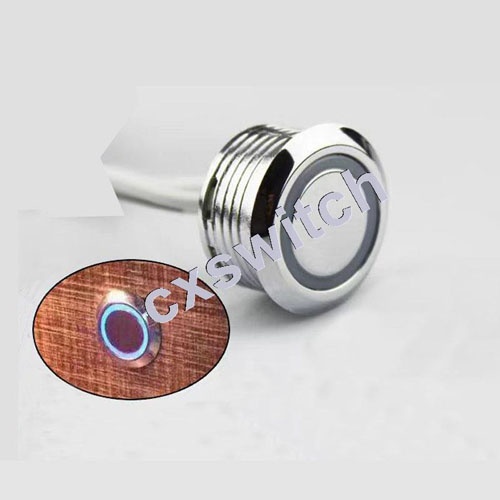

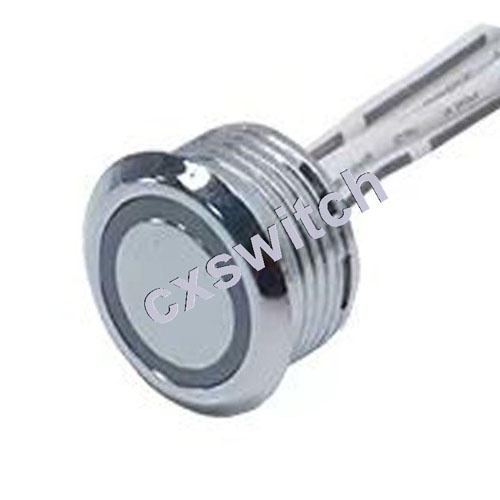

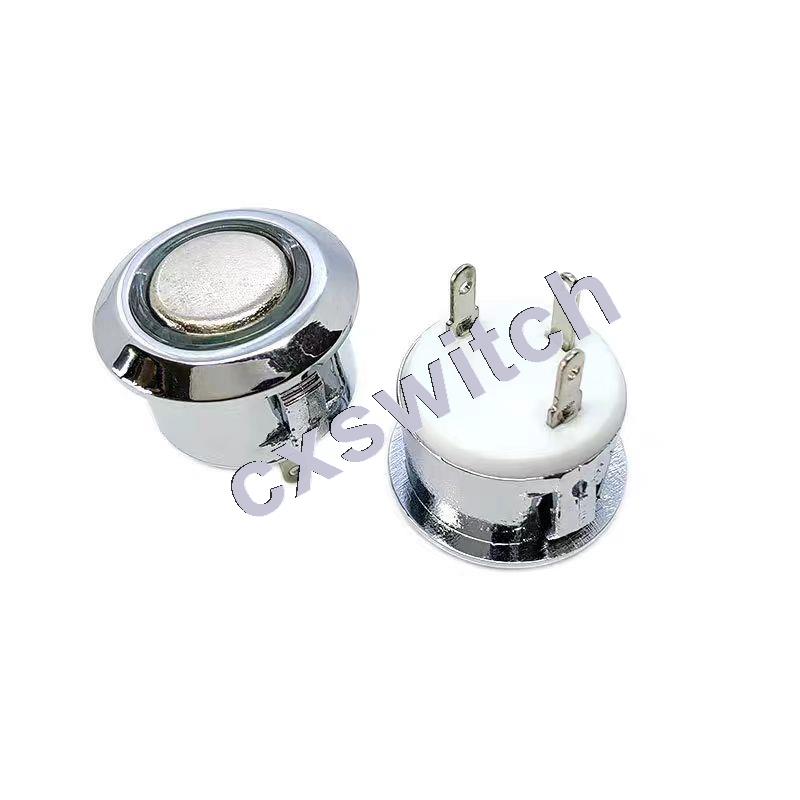

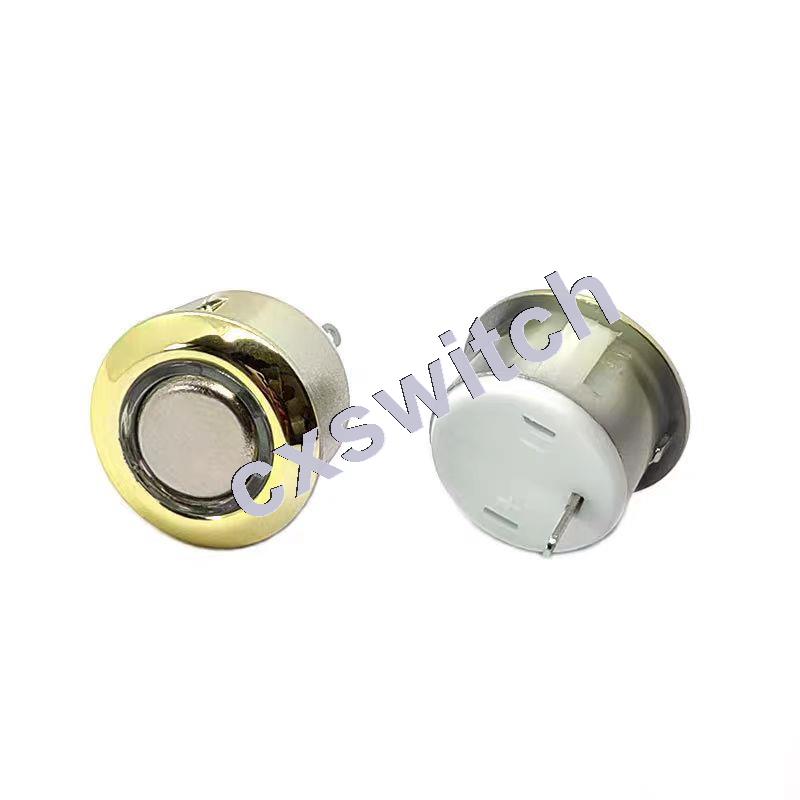

This led dimmer switch for led lights is recessed installation.The whole size is 17mm/0.67in.JUST a small touch sensor dimmer switches for led lights .It won't take up much place.You can use it in for your interior lights as a lamp dimmer switch.Or you can use it for your camper light switch.In this way,You can adjust the light to a very low brightness in the dark night instead of turn off the lamp.

This Dimming light Switch, maximum pwer 5V15W、12V36W、24V72W.It normally is used to control the led light. Don't exceed the rating amps and volts, you can run it on your other projects such as mirror as your good customer recommended.

This dc dimmable light switch Often used as 12v switch and led strip dimmer for Cabinet,kitchen,Wine cabinet,Showcase,wardrobe etc

Cutout of pannel:17MM

light color available:Blue,white,yellow

Light voltage:3V,12V,24V,36V etc

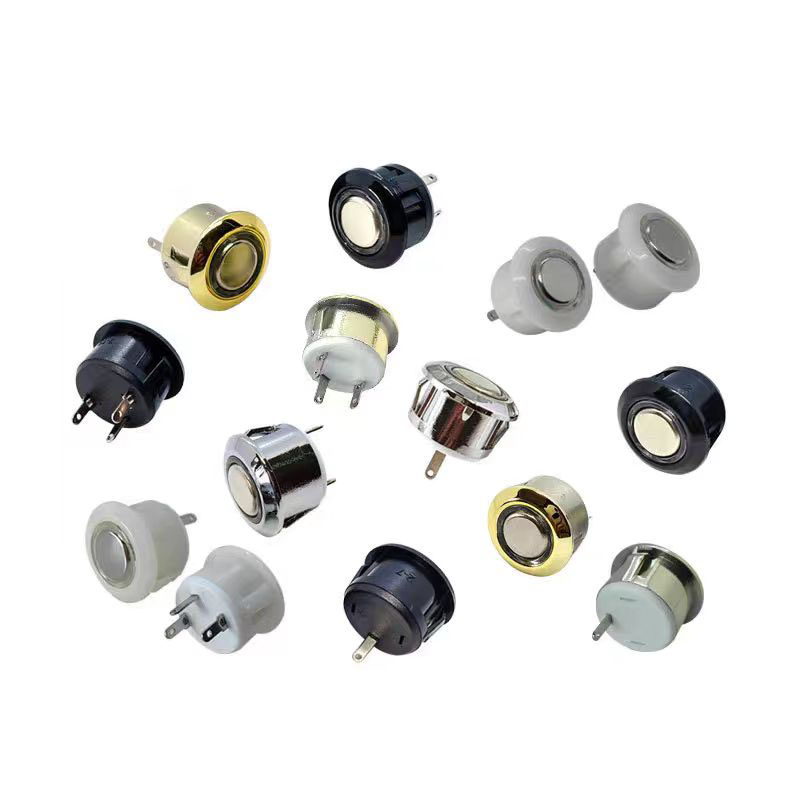

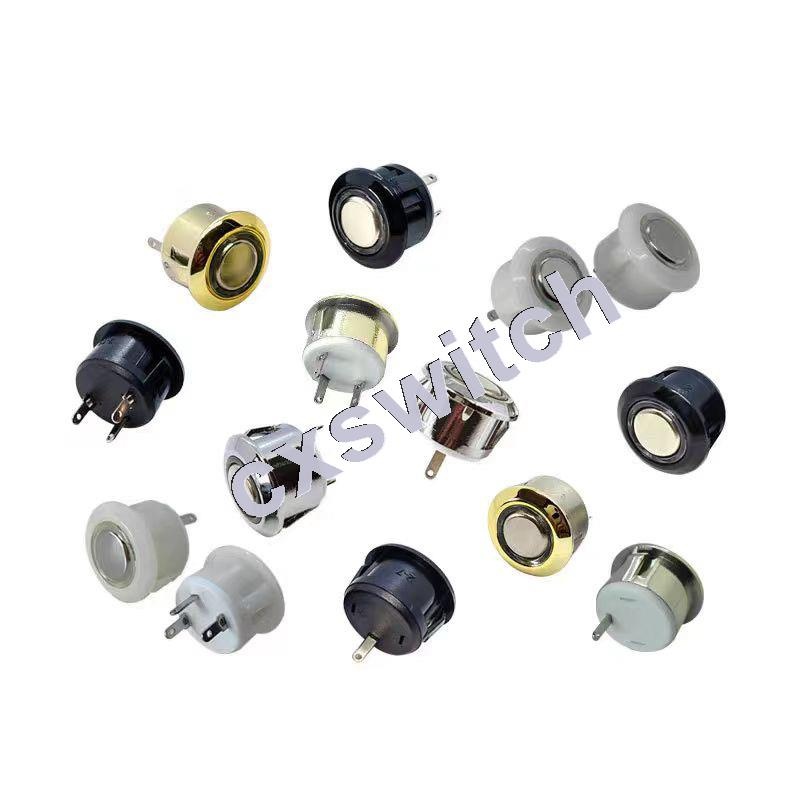

Housing color:White,Silber,Golden,Black etc.

Rating:Max 20mA

Insulation material:ABS+PA

Contact material:copper

Environment temperature:T55

Electrical life:10000 cycles above

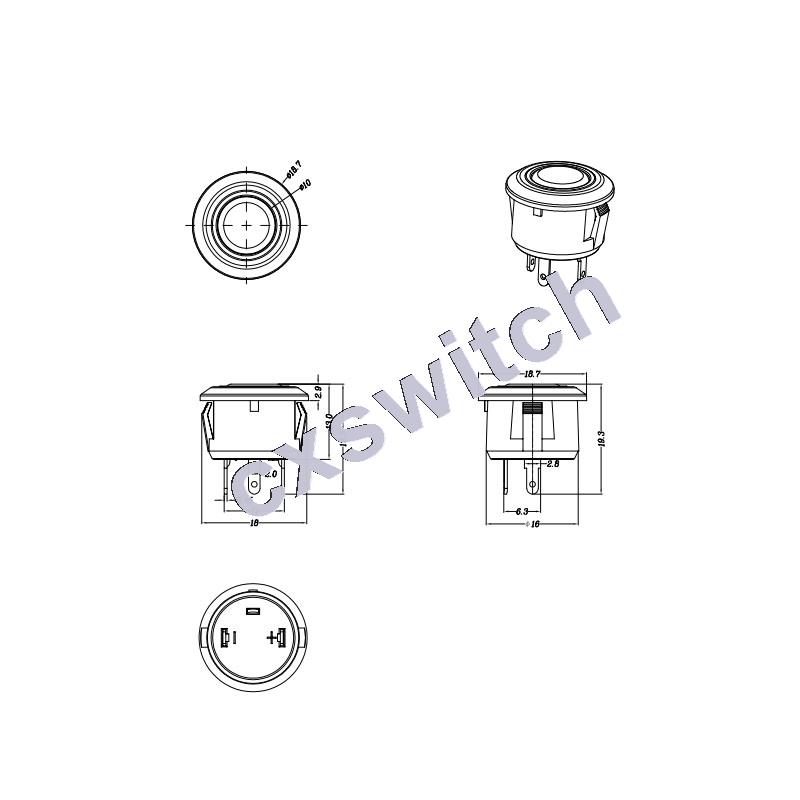

Drawing




Applying sample,

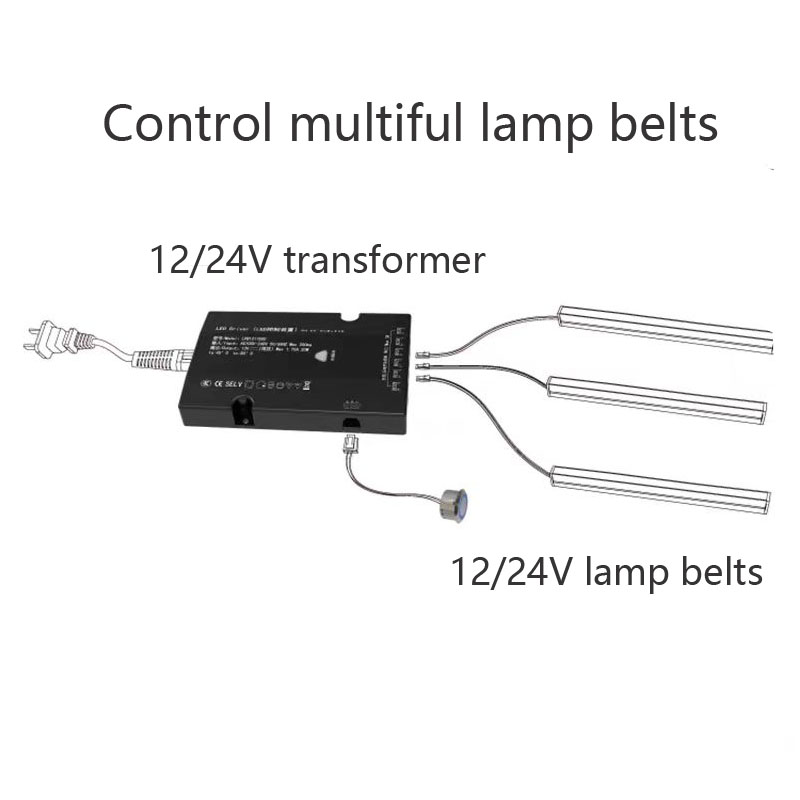

Custom style, need transformer with centralized control constant voltage power supply, professional, load power depends on transformer output power, centralized control, used for constant voltage power supply with centralized control port, control power through inductor, control multiple lamp belts

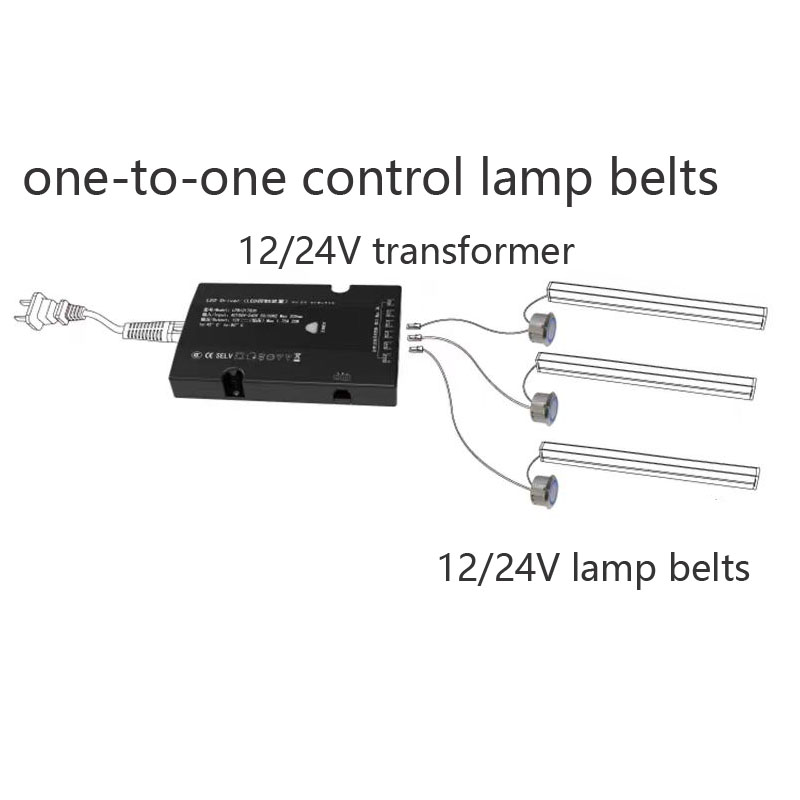

Sub-control: the inductor is connected to the lamp belt and directly controls the lamp belt, the total power of the lamp belt needs to be less than 60W, default conventional style, DuPont plug, versatile, connectable, pluggable, maximum load 60W
